Aux – 9000BTU Air Conditioner

Brand: Aux

Series: J-Smart

Model: MASDC09JR3

Capacity: 9000BTU

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Cooling:

• • Rated Capacity: 2600 W (100 – 3670)
  • Rated Power Consumption: 700 W (100 – 1200)
  • Rated Running Current: 4.4 A (0.7 – 5.5)

Max. Input Power: 1200W

Max. Input Current: 5.5A

EER Cooling: 3.71 W/W

EU Energy Rating: A+++

Power Supply Source: 220 ~ 240V – 1 – 50Hz

Refrigerant: R32

Refrigerant Charged: 550g

Max. Discharge Pressure: 4.30 Mpa

Max. Suction Pressure: 2.50g Mpa

Air Flow Volume: 600 m³/h

Noise Level: 42 dB (A)

Noise Level: 49 dB (A)

Installation Kit Includes:

• • Insulation Pipe
  • Copper Tube
  • Flaring Nut
  • Wall Bracket (Steel)
  • Wire (Length: 10 Feet) – 4 Core (2.5mm Thickness)

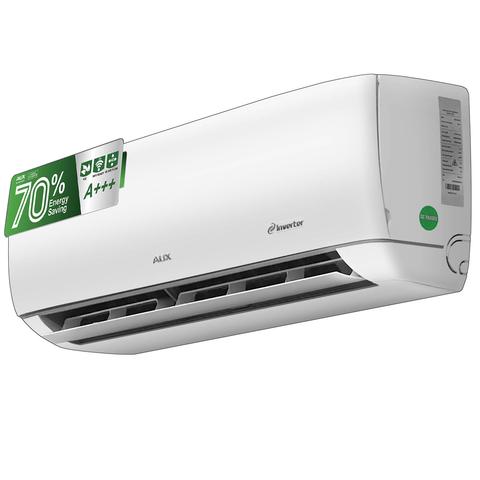

Indoor:

Net Dimension: 792 x 292 x 201mm

Packing Dimension: 888 x 370 x 290mm

Indoor Unit Weight (Net): 9kg

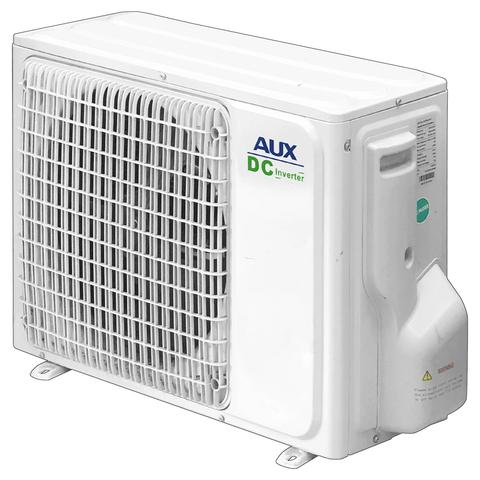

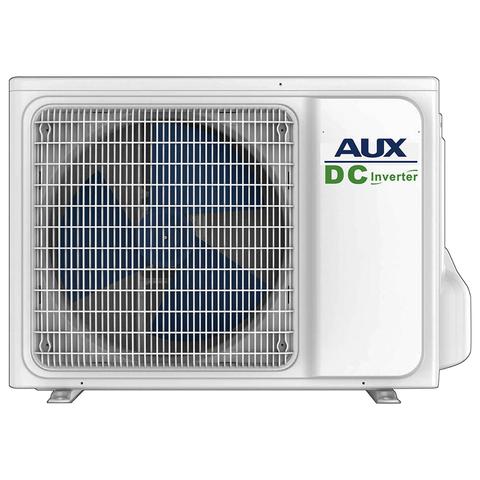

Outdoor:

Compressor Parameter: Type: Rotary

Fan system:

• • Type: Axis Flow
  • Vane Number: 3
  • Blade Material: AS

Fin:

• • Material: Q
  • Fin Type: Window
  • Fin Spacing: 1.4mm

Net Dimension: 660 x 500 x 240mm

Outdoor Unit Weight (Net): 24kg

Note:

We have Wi-Fi USB Dongle (Sold Separately) that is compatible with this Air Con. To get to this USB Dongle, Click this link…
