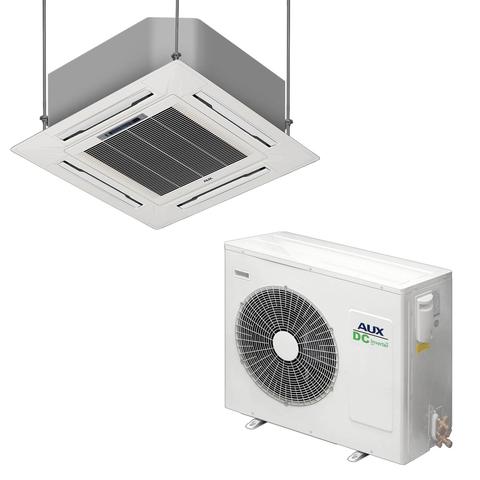

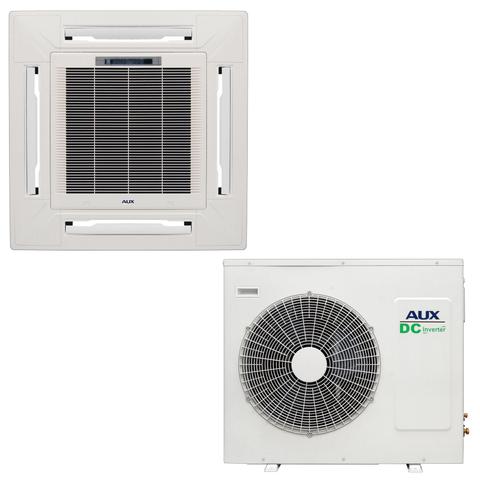

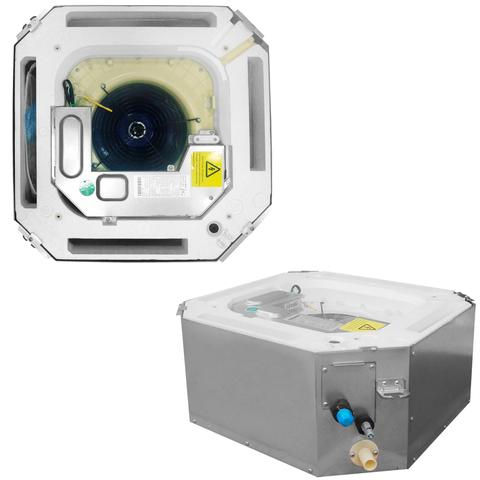

Aux – Inverter 4-Way Cassette (18000BTU)

Indoor Unit

• • Model: ALCA-H18/4DR1A
  • Power Supply: 220~240, 50, 1 (V~, Hz, Ph)

Capacity (Cooling):

• • 20000-18000-5500 Btu/h
  • 5610-5100-1530 W

Electric Data

• • Rated Cooling Power Input: 2053-1579-474 W
  • Rated Cooling Current: 9.81-7.55-2.25 A

Indoor Fan Motor

• • Model: XD30B
  • Output Power x Fan quantity: 30 x 1 W
  • Capacitor: 2 uF
  • Speed (Hi/Mi/Lo): 835/760/685 r/min

Indoor Coil

• • Number Of Row: 2
  • Tube Pitch (a) x Row Pitch (b): 20.5 x 12.7mm
  • Fin Pitch: 1.5mm
  • Fin Material: Hydrophilic Aluminum fin
  • Tube outside Dia. And Material: φ7, Inner grooved
  • Coil Length x Height x Width: 1322 x 205 x 25.4mm
  • Heat Exchange Area: 5.76m²

Indoor Unit

• • Indoor Air Flow (Hi/Mi/Lo): 750/650/580 m³/h
  • Noise Level (Hi/Mi/Lo): 46/41/39 dB(A)
  • Net Dimension (W x H x D): 570 x 570 x 260 mm
  • Net Weight: 17kg
  • Gross Weight: 20kg

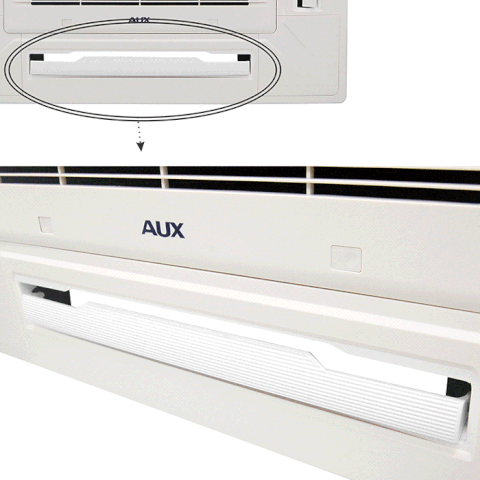

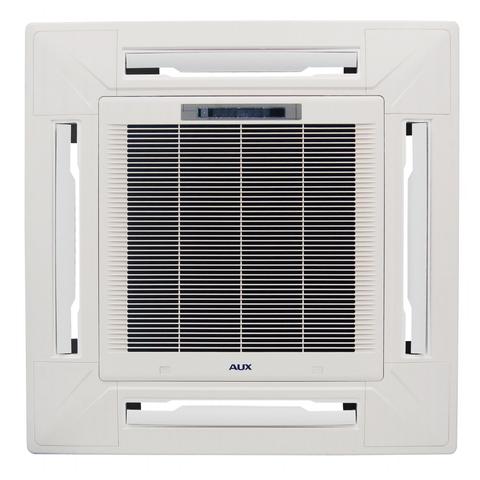

Panel

• • Model: MB13-I
  • Net Dimension (W x H x D): 650 x 650 x 55 mm
  • Packing Dimension (W x H x D): 710 x 710 x 80 mm
  • Net weight: 3kg
  • Gross weight: 5kg

Refrigerant Pipe

• • Liquid Side: 6.35(1/4) mm
  • Gas Side: 12.7 (1/2) mm
  • Drainage: R3/4in (DN20) mm
  • Refrigerant Pipe Length: 20m
  • Difference in Level: 15m

Connection Wiring

• • Power Wiring (Indoor): 3 x 1mm²
  • Power Wiring (Outdoor): 3 x 2.5mm²
  • Signal Wiring: 2 x 1mm²

Wireless Remote Controller: YKR-L/300E

Application Area: 21-35 m²

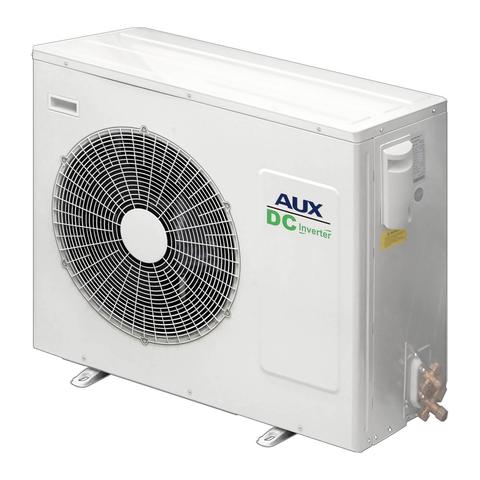

Outdoor Unit

• • Model: AL-H18/4DR1A (U)
  • Power Supply: 220~240, 50, 1 (V~, H, Ph)
  • Input Consumption: 2400W
  • Current: 12.1A

Capacity (Cooling):

• • 20000-18000-5500 Btu/h
  • 5610-5100-1530 W

Type: Rotary

Capacity: 5560W

Input: 1255W

Frequency Range: 16.7-120 Hz

Rated Current (RLA): 4.2A

Locked Rotor Amp (LRA): 30A

Refrigerant Oil: 480 (68HES-H) ml

Output Power x Fan Quantity: 30W x 1

Capacitor: 1.5 uF

Speed: 850/720/570 r/min

Outdoor Coil:

• • Number Of Row: 2
  • Tube Pitch (a) x Row Pitch (b): 22 x 19.5mm
  • Fin Pitch: 1.4mm
  • Fin Material: Hydrophilic Aluminum fin
  • Tube outside Dia. And Material: φ7, Inner grooved
  • Coil Length x Height x Width: 835 x 506 x 38.1mm
  • Heat Exchange Area: 4.2m²

Air Flow Volume: 1529 CFM, 2600m³/h

Noise Level: 55 dB (A)

Dimension (W x D x H):

• • Net: 800 x 286 x 530mm
  • Packing: 920 x 400 x 620mm

Weight:

• • Net: 37.5kg
  • Gross: 40kg

Refrigerant Type/Quantity:

• • Type: R410A
  • Charged Volume: 1.05kg

Design Pressure: 4.2MPa

Refrigerant Piping:

• • Liquid Side: 6.35 (1/4) mm
  • Gas Side: 12.7 (1/2) mm
  • Drainage: R3/4in (DN20) mm
  • Length: 20m
  • Height: 15m

Connection Wiring:

• • Power Wiring (Indoor): 3 x 1mm²
  • Power Wiring (Outdoor): 3 x 2.5mm²
  • Signal Wiring: 2 x 1mm²

Application Area: 21-35m²
