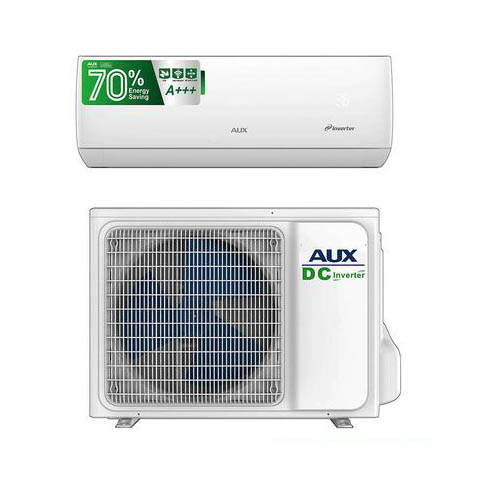

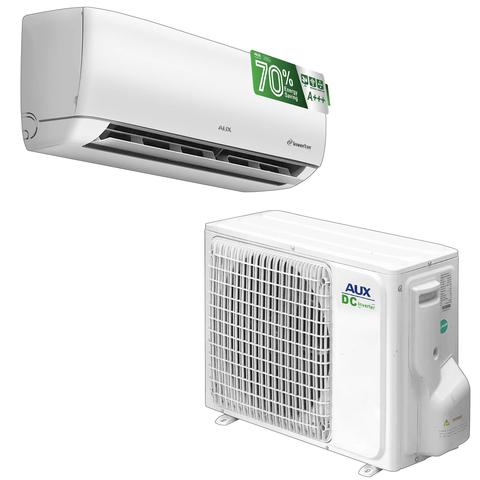

Aux – 12000BTU Air Conditioner

Brand: Aux

Series: J-Smart

Model: MASDC12JR3

Capacity: 12000BTU

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Cooling:

• • Rated Capacity: 3500 W (110 – 3700)
  • Rated Power Consumption: 1125 W (200 – 1600)
  • Rated Running Current:5 A (1.0 – 7.5)

Max. Input Power: 1680W

Max. Input Current: 7.5A

EER Cooling: 3.10 W/W

EU Energy Rating: A+++

Power Supply Source: 220 ~ 240V – 1 – 50Hz

Refrigerant: R32

Refrigerant Charged: 420g

Max. Discharge Pressure: 4.30 Mpa

Max. Suction Pressure: 2.50g Mpa

Air Flow Volume: 630 m³/h

Noise Level: 43 dB (A)

Noise Level: 50 dB (A)

Installation Kit Includes:

• • Insulation Pipe
  • Copper Tube
  • Flaring Nut
  • Wall Bracket (Steel)
  • Wire (Length: 10 Feet) – 4 Core (2.5mm Thickness)

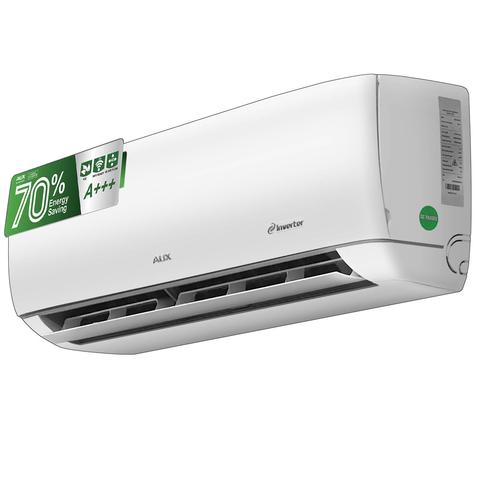

Indoor:

Net Dimension: 881 x 296 x 205mm

Packing Dimension: 977 x 370 x 285mm

Indoor Unit Weight (Net): 9.5kg

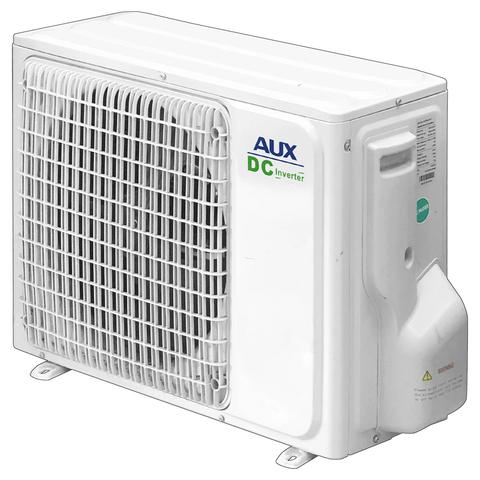

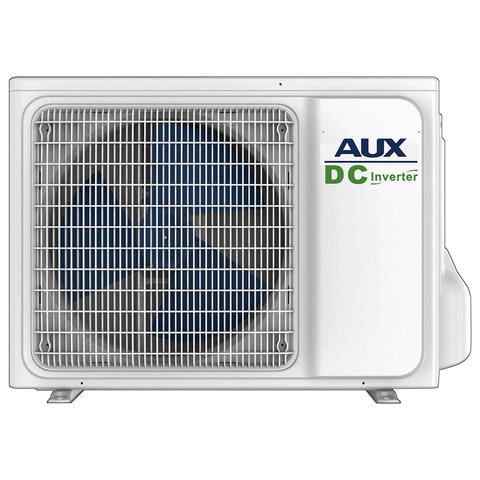

Outdoor:

Compressor Parameter: Type: Rotary

Fan system:

• • Type: Axis Flow
  • Vane Number: 3
  • Blade Material: AS

Fin:

• • Material: Q
  • Fin Type: Window
  • Fin Spacing: 1.4 mm

Net Dimension: 730 x 545 x 285mm

Outdoor Unit Weight (Net): 24kg

Note:

We have Wi-Fi USB Dongle (Sold Separately) that is compatible with this Air Con. To get to this USB Dongle, Click this link…
